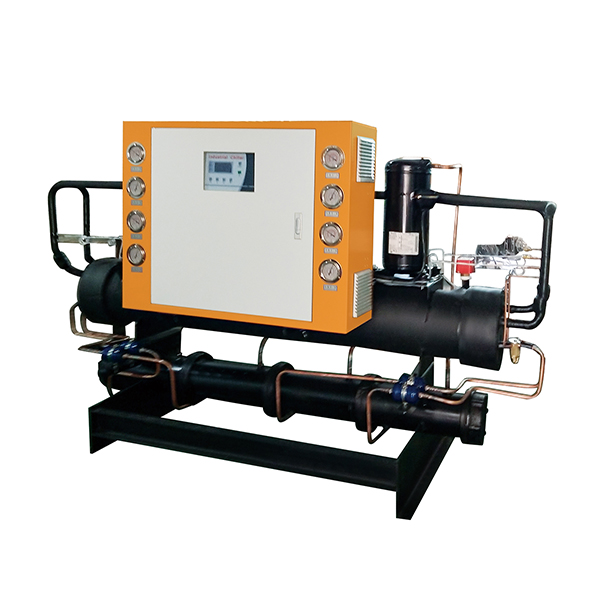

产品简介 Introduction

◆ 采用微电脑控制，按钮操作，操作介面简洁易懂。

◆ 高精度电子温控器，能精确控制水温在±2℃内，温控范围：5℃→30℃间(可自由选择)。

◆ 采用优化的单机头，双机头，三机头，四机头甚至六机头，组合设计，可有效降低能耗。

◆ 采用全新原装进口压缩机：日本松下，日本大金，美国谷仑等品牌，及高效壳管式冷凝器+蒸发器组合：维护保养方便，保证了高效的制冷效果。

◆ 具有完善的安全及保护功能：延迟启动功能，水流故障检测功能，压缩机防频繁启动功能，出水温度补尝功能，电源缺相保护功能，逆相保护功能，过载保护功能，高/低压保护功能，出水温度过低保护功能，水压过低保护功能，散热不足保护功能等。

◆ 该机型使用与箱型水冷式冷水机较为相同，只是需要配备机外保温水箱或水池/水槽及相应冷冻水循环水泵才能正常使用。

◆ 该机型安装时必须要有冷却水塔或其它冷水源与散热循环水泵方可使用，如不具备该条件请选择我司另一款冷水机：箱型风冷式冷水机。

◆ Using microcomputer control, button operation, simple and easy to understandoperation interface.

◆ The high-precision electronic temperature controller can accurately control the watertemperature within ±2℃, and the temperature control range: 5℃→30℃ (freechoice).

◆ Using optimized single-head, double-head, three-head, four-head or even six-headcombination design, can effectively reduce energy consumption.

◆ Adopt brand-new imported compressors: Japanese Panasonic, Japanese Daikin,American Gulun and other brands, and high-efficiency shell-and-tube condenser +evaporator combination: easy maintenance and efficient cooling effect.

◆ It has complete safety and protection functions: delayed start function, water flowfault detection function, compressor anti-frequent start function, outlet watertemperature compensation function, power supply phase loss protection function,reverse phase protection function, overload protection function, high/low pressureprotection function , The water outlet temperature is too low protection function, thewater pressure is too low protection function, theheat dissipation protection functionis insufficient.

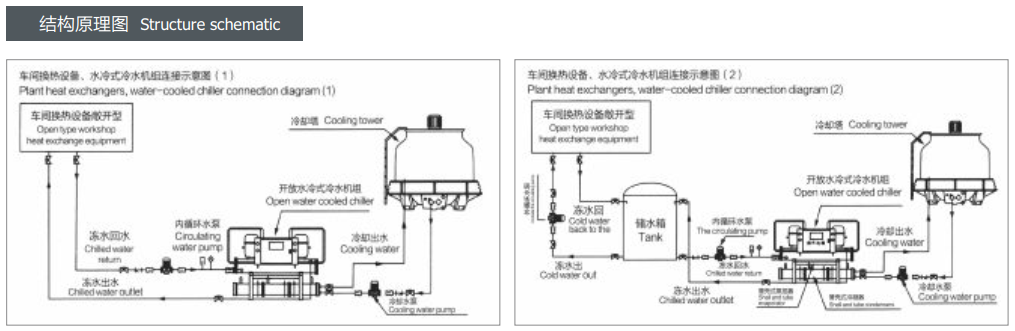

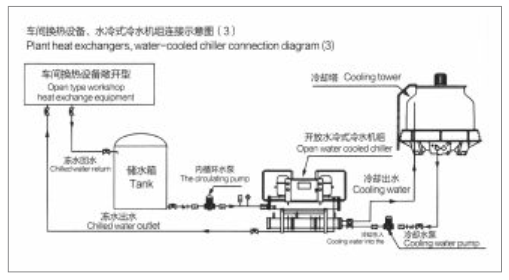

◆ The use of this model is the same as the box-type water-cooled chiller, except that itneeds to be equipped with an external thermal insulation water tank or a pool/sinkand the corresponding chilled water circulating water pump for normal use.

◆ This model must be installed with a cooling water tower or other cold water sourceand a cooling circulating water pump before it can be used. If this condition is notavailable, please choose another chiller from our company: box-type air-cooledchiller.
